Medical ventilator design details

Gtech are making design details of a medical ventilator, manufactured in a matter of days, public.

It is hoped that it will help in the battle against COVID-19.

Gtech are making design details of a medical ventilator, manufactured in a matter of days, public. It is hoped that it will help in the battle against COVID-19.

Getting in touch:

We are overwhelmed with the support and interest shown in the Gtech ventilator, if you wish to get in touch for more information, press releases or just to show your support - please contact the team: [email protected]

Live Updates Icon

LATEST Resource & download centre

Live Updates Icon LATEST

Resource & download centre

Watch:

Ventilator video

15th April, 2020

Gtech Ventilator Production Assembly - Behind the scenes.

Gtech Ventilator Production Assembly - Behind the scenes.

Click to view

Ventilator video

27th March, 2020

Gtech Ventilator calibration.

Gtech Ventilator calibration.

Click to view

Ventilator video

24th March, 2020

Gtech Ventilator assembly.

Gtech Ventilator assembly.

Click to view

Ventilator video

22nd March, 2020

Learn about the development of the ventilator.

Learn about the development of the ventilator.

Click to view

Download & View:

Ventilator BOM Drawings and schematic animation

Excel Icon

28th March, 2020

Gtech Ventilator BOM file

Gtech Ventilator BOM file

Click to download

PowerPoint Icon

28th March, 2020

Gtech Ventilator schematic and animation

Gtech Ventilator schematic and animation

Click to download

Pdf Icon

23rd March, 2020

Individual assembly part diagrams and information PDFs

Individual assembly part diagrams and information PDFs

Click to download

View full 3d ventilator design files

Full 3d ventilator design files

FREE eDrawing CAD viewer:

FREE Edrawing viewer:

Download eDrawing’s FREE CAD viewer software to interact and view full 3D design files of Gtech’s ventilator:

3D Icon

28th March, 2020

Gtech Ventilator eDrawings

Gtech Ventilator eDrawings

Click to download

CAD Icon

28th March, 2020

Gtech Ventilator Step CAD files

Gtech Ventilator Step CAD files

Click to download

the Gtech ventilator

From vacuums to ventilators

Gtech Ventilator Press Release, April, 2020.

Gtech has made public design details of a medical ventilator which could be manufactured in a matter of days for emergency use.

Nick Grey, owner of the company began working on the project after being contacted by Gareth Rhys Williams, Government Chief Commercial Officer in the early hours of Sunday, 15th March.

“At first I thought it was a hoax – being asked if I could assist in making up to 30,000 medical ventilators in as little as two weeks” said Nick “When I realised that this was a genuine need I felt compelled to help”.

Nick spent the day learning how ventilators worked and immediately tasked Gtech’s engineering and model making team to tackle the challenge. He also bought a ventilator off eBay and arranged for it to be collected first thing the following morning.

There were quite a lot of problems; oxygen is a very reactive gas, which rules out many motors and electrical devices. Normal air operated cylinders can only run on air, not pure oxygen so they could not be used.

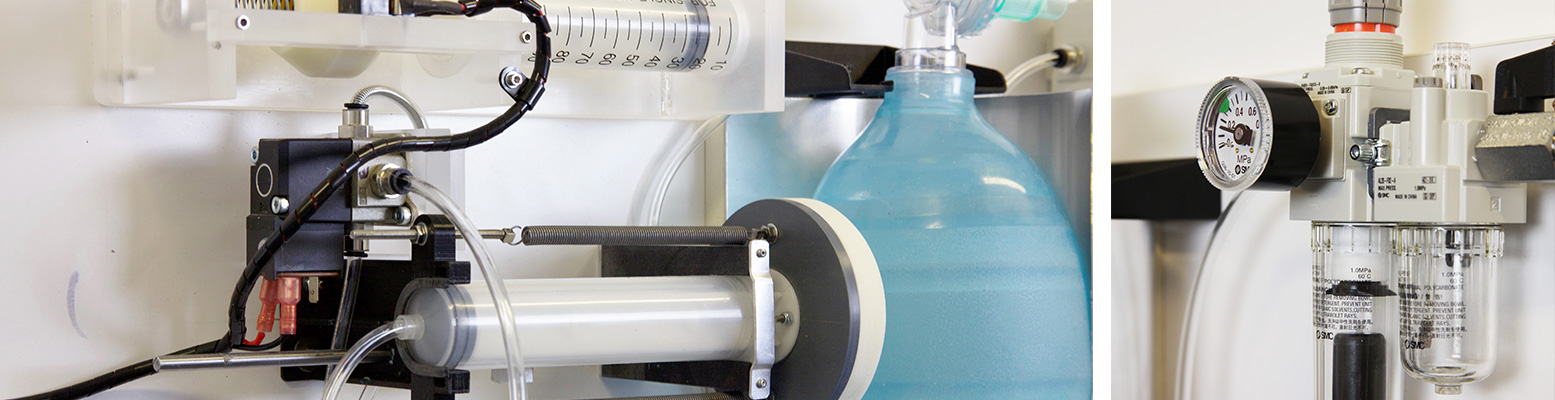

The breakthrough was to repurpose an everyday syringe into an oxygen-powered ram. A valve directs oxygen into the syringe which squeezes a self-inflating air container delivering 400ml of air directly to the patients’ lungs. A two port valve and ‘throw-over’ mechanism cause the ram to reciprocate.

In order to save and conserve oxygen, the waste gas is fed into a reservoir to enrich the patient's air supply.

The ventilator is driven and controlled entirely from the hospital oxygen supply without the need for electricity.

The number of cycles per minute, volume of air delivered, and air pressure can all be controlled according to patient’s needs.

“We designed the ventilator entirely from parts that can readily be made from stock materials or bought off-the-shelf. This means that Gtech ventilators can be made by almost any engineering and manufacturing company around the world” said Nick.

A video of the ventilator working was presented to the government and NHS on 20th March.

Five days later the government selected other partners for the ventilator project.

“I was flattered to be asked to help. Our ventilator was simplistic as we were serious about meeting the timescales. We could have mass produced from 26th March onwards" said Nick.

"In the end, I believe the clinicians felt that a more sophisticated design was required. It was great to be involved and we received amazing encouragement and thanks for our efforts. I wouldn’t hesitate to help again if I could in future. Well done and best of luck to the companies who are stepping in to support the country.”

Gtech received hundreds of offers of help from British companies and many inquiries from overseas asking for our designs.

Gtech, based in Worcester specialise in making cordless vacuum cleaners and garden power tools.

Play Button Gtech engineers working on a Medical Ventilator

Learn about the development of the ventilator, and watch it in action in the video above.

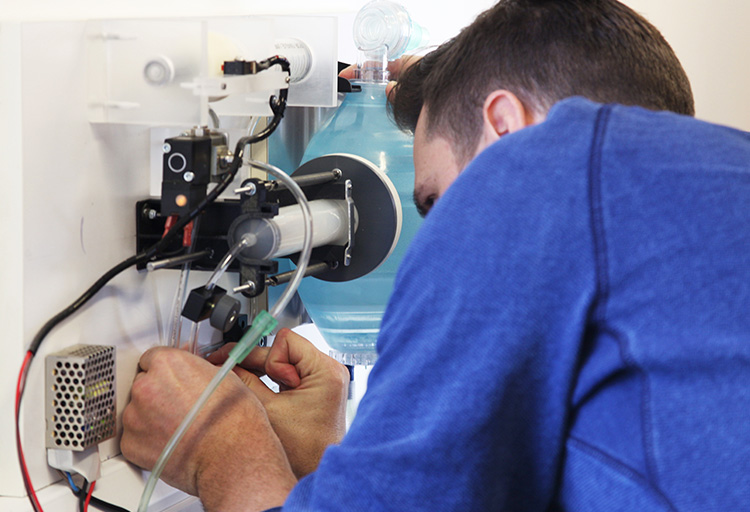

Gtech engineers working on a Medical Ventilator

Nick Grey and his engineering team with the ventilator - at Gtech’s Worcester headquarters.
